Hangzhou Sports Center

• 67% steel savings vs Bird's Nest
• 400,000 sq m stadium park site
• Steel costs +217% since 2007

NBBJ needed to design and engineer a highly organic, lotus-inspired steel shell for the 80,000-seat Hangzhou stadium, a form far too complex to detail using conventional 2D drafting. The design team turned to Grasshopper, built on top of Rhino, to construct a fully parametric model of the exterior steel shell that could be adjusted by changing a handful of design parameters rather than redrawing geometry by hand.

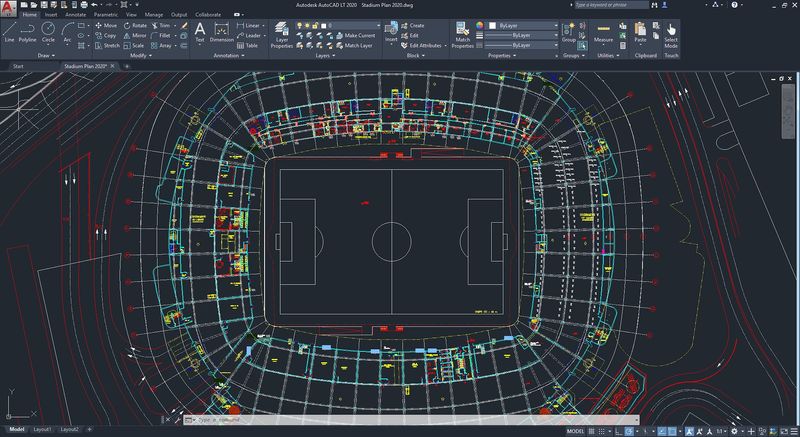

Because the parametric model linked the steel shell directly to the concrete bowl below, the two systems could be coordinated and optimized together for structural stability and minimal steel use. Revit and AutoCAD were used alongside the parametric model to produce coordinated documentation and drawings, while the underlying Grasshopper definition remained the single source of truth that engineers and material consultants could pull data from directly for their own analysis.

NBBJ faced a stadium roof and shell design that needed to express an organic, sculptural form while using as little steel as possible, at a moment when global steel demand had risen 78% over the preceding decade and steel costs had climbed 217% since 2007. Every added ton of steel in the shell directly increased the project's cost, so the design team needed to explore many structural and geometric variations before settling on a final scheme.

Coordinating that exploration across disciplines was itself a challenge: the exterior steel shell and the concrete bowl beneath it had to work together structurally, and any change to one system could affect the other. Testing multiple structural and material configurations by hand, and keeping architects, structural engineers, and material consultants working from consistent geometry throughout, would have been extremely difficult without a shared, adjustable model.

Before adopting a parametric workflow, architects designing complex curved stadium geometry typically worked through a manual build-test-discard cycle: modeling a design option by hand, sending it to structural engineers for analysis, and then redrawing the geometry from scratch if the option did not perform well enough structurally or used too much steel. Each iteration required re-modeling the shell's geometry and re-coordinating it with the concrete bowl below, since there was no live link between the architectural form and the engineering analysis.

For a shell as large and organic as the Hangzhou stadium's, that manual cycle would have made it prohibitively slow to test enough design options to find an efficient structural solution, especially with global steel costs having risen 217% since 2007 and demand up 78% in the preceding decade.

Because the stadium's steel shell was modeled parametrically in Grasshopper, the design team could make design changes with an extremely short turnaround instead of rebuilding the geometry from scratch for every iteration. That let them test many more structural and geometric options than a manual, build-test-discard workflow would have allowed, while keeping the steel shell and concrete bowl systems coordinated and optimized together for stability.

The parametric model also served as a shared basis for cross-disciplinary collaboration: structural engineers and material consultants could pull the design team's geometry directly into their own analysis tools rather than working from static drawings, which kept communication between disciplines close and made it easier to catch further optimization opportunities as the design developed.

The result was a stadium shell that achieved a 67% steel savings compared to similar large arenas such as Beijing's Bird's Nest (the Beijing National Stadium), a significant outcome given how much global steel costs had risen in the years leading up to the project.
