NavisWorks

Autodesk Navisworks is a product family rather than one uniform license. Navisworks Manage combines model review, simulation, quantification, and advanced coordination with Clash Detective. Navisworks Simulate retains aggregation, review, 5D scheduling, rendering, and takeoff capabilities but does not include Manage’s clash detection and interference-management toolset. Navisworks Freedom is the free viewer for issued NWD and DWF files. A contractor running coordination meetings needs a different edition from a client who only needs to inspect a published model.

The core workflow is federation and review

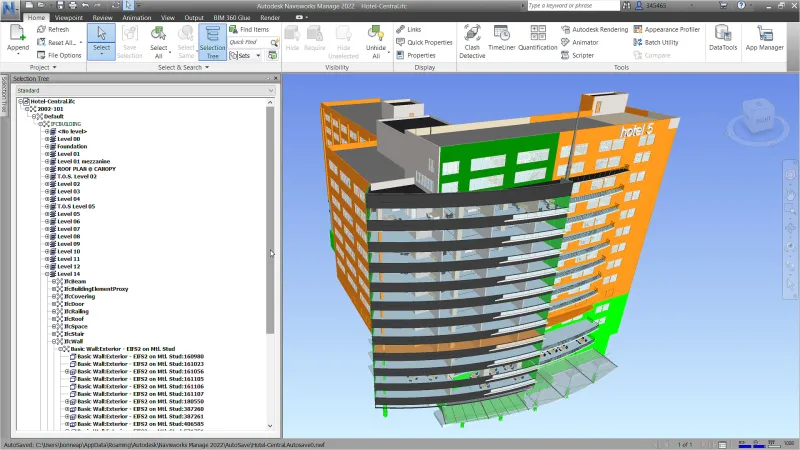

Navisworks brings discipline models and construction data into one navigable project view. Autodesk’s product details describe model aggregation, real-time navigation, measurement, redlining, viewpoints, rendering, and support for more than 60 file formats. Current documentation lists RVT, DWG, DXF, IFC, DGN, SKP, 3DM, point-cloud formats, and many manufacturing formats among the files Navisworks can open. Broad format support is valuable, but model origin, coordinates, units, property mapping, and export settings still decide whether the federated model is trustworthy.

An NWF usually serves as the live coordination file because it references source or cache files while retaining Navisworks review data. An NWD is a distributable snapshot containing model geometry and review information. NWC files are optimized cache or export files used to move geometry and metadata efficiently. Autodesk’s native-file guidance makes those roles distinct; confusing them can leave a team reviewing a stale snapshot or breaking links to current discipline models.

Clash detection is a Manage capability

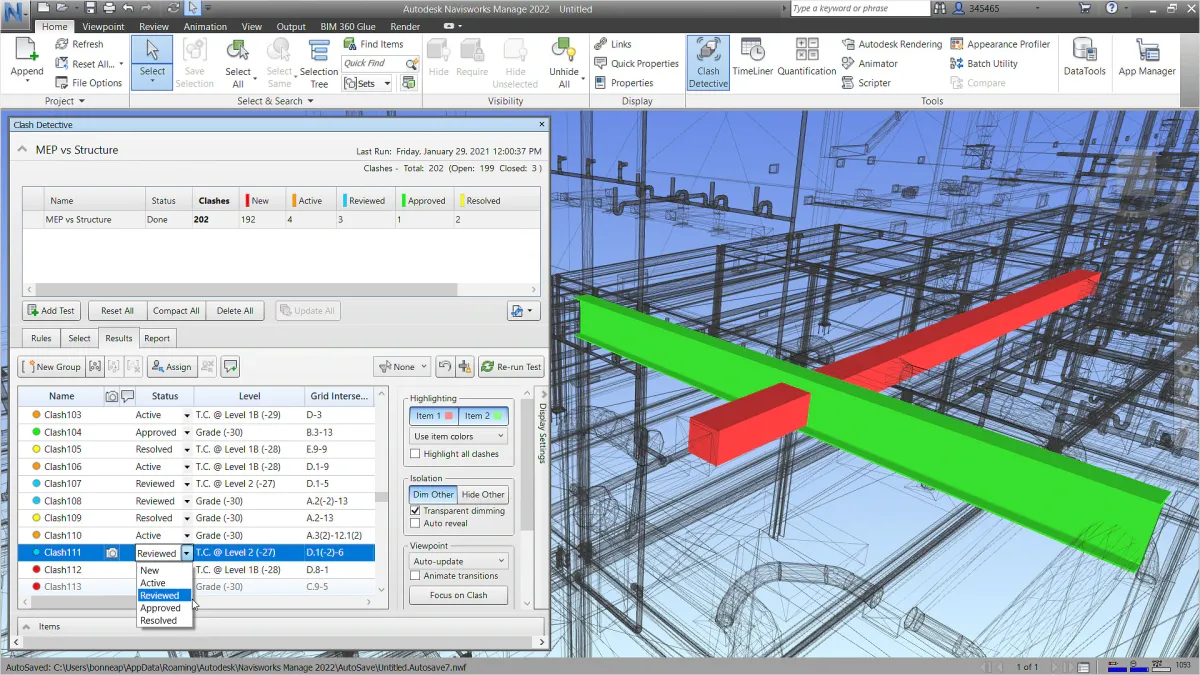

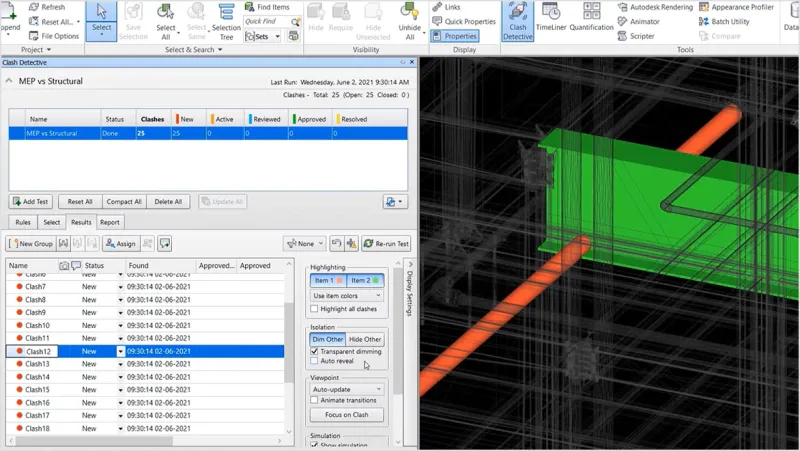

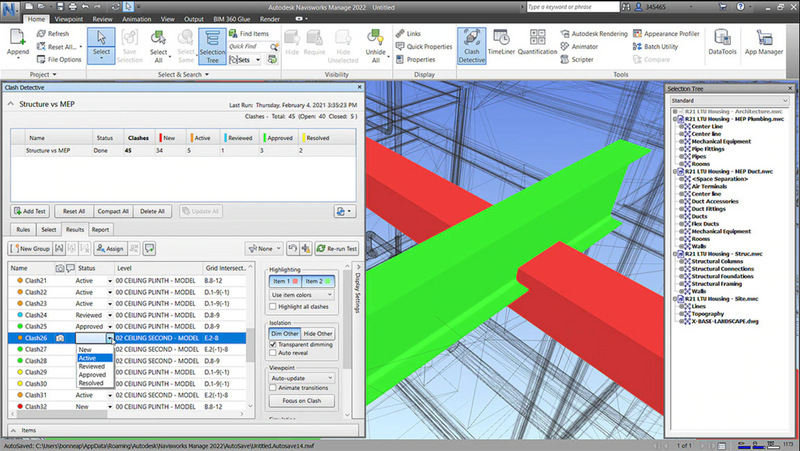

Clash Detective in Navisworks Manage can test hard interferences, clearances, and other coordination conditions across the federated model. The useful output is not a raw clash count. Coordinators must define test matrices, tolerances, search or selection sets, naming rules, responsibility, grouping, status, and rerun procedures. Otherwise, duplicated geometry and low-value contacts can overwhelm the issues that affect installation or access.

Current Navisworks workflows can create issues from clash results and synchronize them with Model Coordination in Autodesk Construction Cloud or BIM 360. Autodesk documents status synchronization, assignments, comments, and issue updates between the desktop model and the cloud project. That connection supports accountability, but only when the project has the correct coordination space, permissions, loaded models, and agreed status mapping.

Revit and AutoCAD feed coordination rather than become editable models

Navisworks can aggregate Revit models with other discipline files and can read RVT directly or consume exported NWC data. It also accepts DWG and DXF information from AutoCAD and other CAD applications. The supported-format table confirms these readers alongside IFC and numerous specialist formats. Navisworks is where those contributions are reviewed together; design corrections normally return to the authoring source and are then republished or refreshed.

Time and quantities extend the model beyond geometric checking

TimeLiner links model objects with schedule tasks to simulate construction sequences and site logistics. Autodesk describes 5D project scheduling, planned-versus-actual views, animation, and schedule playback; this is useful for testing phasing, access, material flow, temporary works, and communication with field teams. The model-to-task mapping still requires care. A polished animation can conceal incomplete task logic or objects assigned at the wrong level.

Integrated quantification supports 2D and 3D takeoff for lengths, areas, counts, and model quantities. It can reduce manual measurement when object properties and takeoff rules are consistent. Estimators should still reconcile classifications, units, model scope, exclusions, and design maturity before treating the result as a commercial quantity.

Subscriptions, trials, and Freedom serve different access needs

Manage and Simulate are paid Autodesk subscriptions, with purchase options and displayed prices varying by edition, region, term, and account context. Autodesk offers a Navisworks trial that is typically 30 days, while eligible students and educators may receive renewable one-year educational access. Navisworks Freedom is a separate free viewer for NWD and 3D DWF files; it can navigate published models and read embedded viewpoints, animations, redlines, comments, hierarchy, and properties, but it is not a free replacement for authoring coordination files or running Clash Detective.

Best fit and practical limits

Navisworks fits teams that receive models from several disciplines and need a desktop environment for federation, constructability review, clash management, schedule simulation, or takeoff. Manage is the clearest fit for active clash coordination; Simulate suits review and analysis without Clash Detective; Freedom helps distribute approved review files to stakeholders.

The product is not a general-purpose CAD or BIM authoring system, and Autodesk’s current published requirements are for 64-bit Windows rather than native macOS. Its coordination value also depends on repeatable exports, stable coordinates, current references, and issue governance. Cloud-native coordination platforms may be preferable where browser access and continuous shared-model review matter more than Navisworks’ deep desktop toolset; many firms use both approaches rather than treating them as mutually exclusive.
