Millwork Shop Drawings and Renderings for DCB Interiors
David Charlie Brandon designs luxury homes through DCB Interiors, and he also owns the cabinet shop that builds them, East West Cabinet Co. We have been his drafting team since 2022. That adds up to 125 projects so far.
Most jobs are drawings only. Kitchens, butler's pantries, islands, vanities, closets, mudrooms, home offices, bars, wall paneling: almost anything built in. Sets are drawn in AutoCAD to rules his shop wrote down at the start, then go back and forth against his redlines until approved. He gets a DWG the shop can open and a PDF to review.

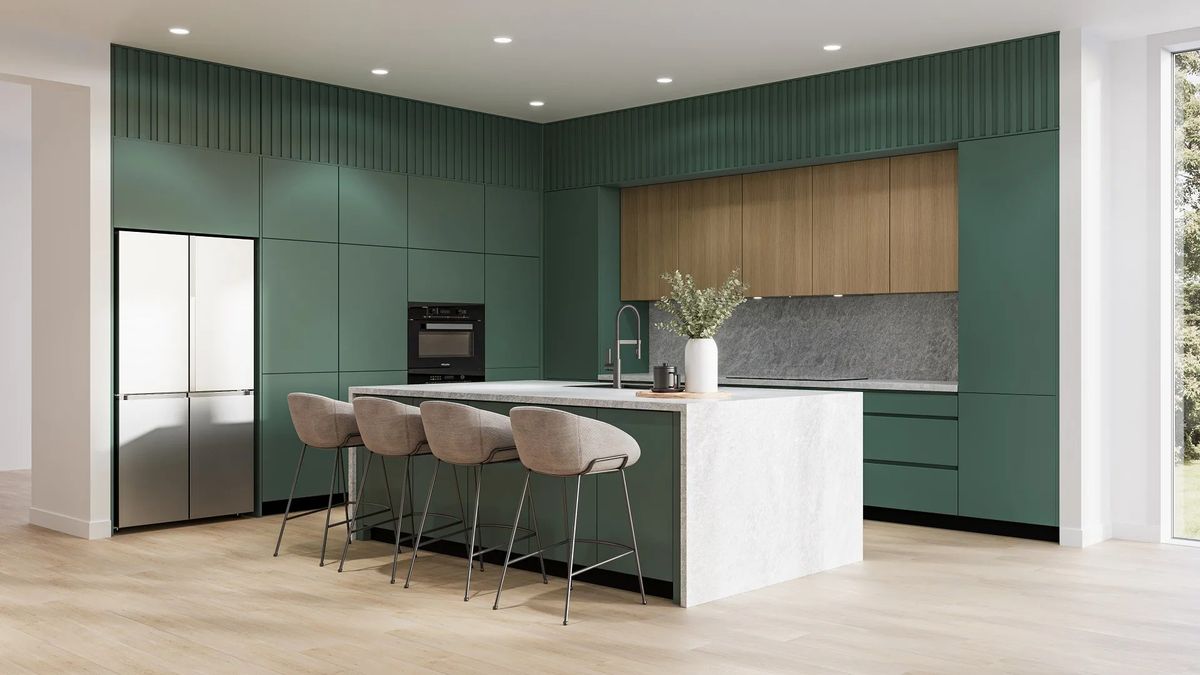

Sometimes a homeowner needs to see the room first. Then we render it, but only after the drawings are signed off, and from that same geometry.
Key Facts
View key facts for "Millwork Shop Drawings and Renderings for DCB Interiors".
Business Impact
- 125 projects delivered since 2022
- Up to 29 sheets for one residence
- DWG sets drawn to the shop's standards
Client Name
Location
Completion Year
Project Type
Tools Used in the Case Study
Discover which tools and technologies were used for "Millwork Shop Drawings and Renderings for DCB Interiors".
AutoCAD
AutoCAD is a leading computer-aided design software used by architects, engineers, contractors, and designers for precise 2D drafting, 3D modeling, documentation, and technical drawings. This AutoCAD review covers its key features, common AEC use cases, pricing, subscription options, and free trial availability. You can also explore how AutoCAD is used across architecture, engineering, and construction, compare its strengths and limitations, and discover the best AutoCAD alternatives for different workflows, budgets, and project requirements.
User Experience
View user experience for "Millwork Shop Drawings and Renderings for DCB Interiors".
Why this tool/tech was selected
Brandon runs a design firm and a cabinet shop at the same time, and that shaped what he needed from a drafting partner. The drawings had to come out in a form his shop could cut from without redrawing: frameless boxes, 3/4" solid wood edges on plywood, 1/2" backers, drawer boxes in 3" steps, soft-close hardware only. He wrote those rules down once, early on, and every set since has followed them.
The second reason was having one team for both outputs. Renderings for his clients are built from the approved shop drawings, so a render can't show a detail the shop never received. One contact, one revision cycle, and deliverables in the same format every time.
Challenges the Client Faced before
Every cabinet in these projects has two readers. The homeowner looks at a rendering and sees oak doors and a stone top. The shop reads a drawing and needs box depths, edge profiles and filler dimensions down to a sixteenth of an inch. When the drawing and the picture come from different teams, the geometry drifts and a revision lands in one document but not the other.
On top of that, site measurements often arrive after drafting has started, and a single home can include a kitchen, vanities, a mudroom and a closet system, each with its own revision cycle.
The previous method used
Projects come to us in whatever form the designer already has: dimensioned sketches from the project architect, floor plans with site measurements, a SketchUp model, or a hand-drawn elevation with finish callouts such as paint grade and wood species. The drafting team reads these side by side, checks the dimensions against each other and marks anything still waiting on a site measurement as TBD.
Time / Money saved & the Business Impact.
After 125 projects the process needs almost no explanation. Some briefs now arrive as a short note asking for "the usual", because the shop standards, file formats and review steps were agreed long ago.
Larger homes are split into parallel tasks, one per zone, so drafting capacity grows with the workload instead of waiting on in-house headcount. The largest set so far ran to 29 numbered sheets for a single residence.
The shop opens the DWG files directly, with no translation step. Renderings are made only after the drawings are approved and from the same geometry, so what the homeowner signs off on is what gets built. There is one point of contact and one revision cycle for both.
Customer Quote
-
Additional Information
Deliverables are DWG and PDF for every set, with renderings on request once the drawings are approved. Over the collaboration the scope has included kitchens, prep kitchens, pantries, islands, banquette seating, bathroom vanities, walk-in closets, mudrooms, laundry rooms, home offices with built-in desks, bar areas, wall paneling, a TV panel with a motorized lift, a reception desk, a coffered ceiling and stair railings.
