BIM Modeling for Heathrow Airport

Case Study Description:

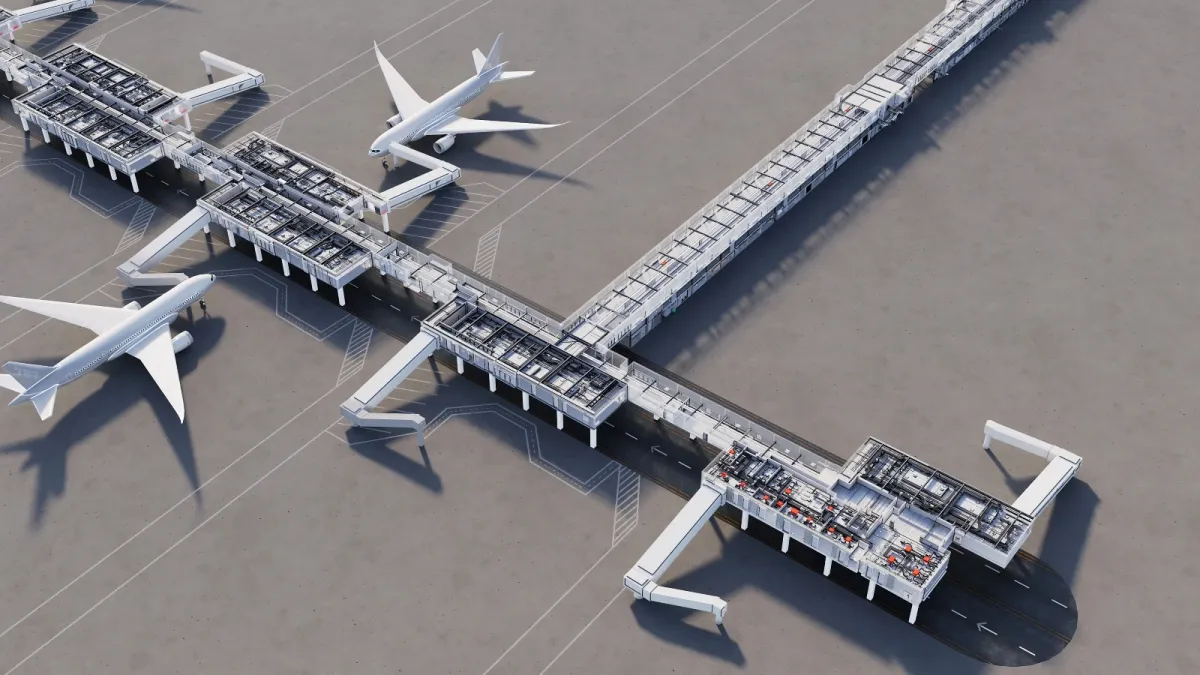

Tesla Outsourcing Services LLC completed a Scan to BIM conversion project for Terminal 3 at Heathrow Airport. The team created a precise BIM model of the gate areas to capture the physical structure, functionality, and design. This process provided accurate data for future renovations, maintenance, and operational improvements to ensure the efficient operation of this major international airport.

The project covered an area of 1,70,887 sq. ft. across 3 floors and achieved an accuracy of 15 mm.

Key project details include:

The final deliverables reached a Level of Development 300 for fully integrated BIM model files.
Architectural modeling focused on gates, walls, flooring, ceiling systems, and door openings.
Structural elements included columns, beams, roof supports, and other critical elements.
The MEP model incorporated mechanical HVAC systems, electrical lighting, power outlets, plumbing, and fire suppression.
The team successfully managed
01. Complex geometry and detailing
02. Integration of MEP systems
03. Safety features using high resolution point cloud data

Key Facts

View key facts for "BIM Modeling for Heathrow Airport".

Business Impact

Accurate data for renovations
Fast modeling for the gates
Maintained regulatory compliance

Client Name

Location

United Kingdom

Completion Year

Project Type

Transportation/Infrastructure

Tools Used in the Case Study

Discover which tools and technologies were used for "BIM Modeling for Heathrow Airport".

See All Similar Tools

Revit

Autodesk Revit is a Building Information Modeling (BIM) software platform used by architects, engineers, contractors, and AEC teams to design, document, coordinate, and deliver building projects. Unlike traditional CAD software, Revit connects 3D building elements with plans, sections, elevations, schedules, quantities, and project data in one coordinated model. Its key features include parametric modeling, multidisciplinary collaboration, construction documentation, worksharing, visualization, and model-based scheduling. Explore Revit pricing, free trial options, major features, use cases, pros and cons, system compatibility, and the best Revit alternatives to determine whether it is the right BIM software for your workflow.

User Experience

View user experience for "BIM Modeling for Heathrow Airport".

Why this tool/tech was selected

The primary reason for selecting Scan to BIM and Revit software was to create a precise digital representation of the physical structure and functionality for the Terminal 3 gate areas at Heathrow Airport. Tesla Outsourcing Services LLC utilized high resolution point cloud data and advanced modeling techniques to capture complex geometric details. This specific tool choice allowed the team to accurately document everything from intricate ceiling design to passenger flow. The client needed this exact technology to provide accurate data for future renovations and ongoing maintenance. Choosing Scan to BIM ensures the efficient operation of this major international airport by creating fully integrated files containing architectural structural and MEP system information. The precise data output supports operational improvements and helps facility managers understand the existing conditions perfectly.

Challenges the Client Faced before

The client faced challenges with complex geometry and detailing including curved roofs glass facades and detailed seating arrangements.
Accurate integration of MEP systems like ventilation lighting and air conditioning was critical for ongoing operations.
Capturing safety features like emergency exits alarms and fire suppression systems accurately was essential to maintain regulatory compliance.

The previous method used

Earlier methods lacked the high resolution point cloud data and advanced modeling techniques required to accurately capture complex geometries like curved roofs and glass facades.

Time / Money saved & the Business Impact.

The business impact of implementing Scan to BIM technology for Heathrow Airport resulted in the successful and on time modeling for the gates in Terminal 3. The combination of quality and speed provided by Tesla Outsourcing Services LLC delivered accurate data essential for future renovations and maintenance. This technology investment directly supports operational improvements and ensures the efficient operation of the commercial airport terminal. By accurately integrating mechanical electrical and plumbing systems the airport can perform ongoing operation and maintenance effectively. Capturing structural elements ensures the stability and safety of the gates while precise modeling of emergency exits and fire suppression systems maintains strict regulatory compliance. The finalized Level of Development 300 model files give the client a comprehensive digital asset for long term facility management.
