Headquartered in Houston, Texas, the firm employs more than 600 professionals and operates 20 U.S. and five international offices.

Passion Behind Design: Pushing the Design Envelope

Walter P Moore

Engineers, innovators, and creators of high-performance, resilient structures, enclosures, and infrastructure worldwide.

Populous

Allianz Field is the permanent soccer-specific stadium home to Minnesota United FC. The iconic feature of Allianz Field is the dynamic skin which wraps around the stadium. To integrate geometric control and PTFE fabric analysis, Walter P Moore created a digital workflow in collaboration with Populous as the architect. This enabled Walter P Moore to rapidly analyze the PTFE skin, adjust the driver pipe spacing so the PTFE wasn't overstressed, and then for the architect to take the new geometry and adjust it as desired for architectural form, which Walter P Moore could then re-analyze. Ultimately, the digitally controlled geometry model of the driver pipes was delivered to the steel fabricator to facilitate production of the HSS pipes. Read more at: https://www.walterpmoore.com/projects/allianz-field

Allianz Field

Rhinoceros 3D is a 3D computer graphics and computer-aided design application software developed by the American company Robert McNeel & Associates. Utilizing NURBS mathematical modeling to produce precise representations of free-form, curving surfaces, Rhino is used in industries such as architecture, industrial design, automotive design, product design, and multimedia and graphic design.

Rhino 3D

Tekla Structures is a building information modeling software able to model structures that incorporate different kinds of building materials, including steel, concrete, timber and glass.

Tekla

<p data-start="190" data-end="758">Revit is a Building Information Modeling (BIM) software developed by Autodesk, widely used across architecture, engineering, and construction disciplines. It allows users to design, model, and document buildings and infrastructure in a single, coordinated environment. In Revit, every element in a project is part of an interconnected database. Changes made to one view&mdash;such as a plan, elevation, or section&mdash;are automatically reflected in all other views of the model. This parametric relationship ensures consistency and reduces the risk of errors in documentation.</p>
<h2 data-start="760" data-end="782">Core Capabilities</h2>
<p data-start="784" data-end="1234">Revit supports both 2D drafting and 3D modeling, but its primary strength lies in its data-rich modeling environment. Each object in Revit is not just geometry; it carries information about its physical properties, materials, and relationships to other components. Revit includes tools for architectural design, structural engineering, and MEP (mechanical, electrical, plumbing) systems, enabling multiple disciplines to work within the same model.</p>
<p data-start="1236" data-end="1641">The software also allows for the creation of schedules, material takeoffs, and detailed construction documentation directly from the model. Because Revit stores all information in one file, edits are reflected across all drawings, schedules, and sheets automatically. This feature is particularly valuable for coordinating complex projects where multiple people and teams are contributing to the design.</p>
<h2 data-start="1643" data-end="1674">Collaboration and Workflow</h2>
<p data-start="1676" data-end="2024">Revit is designed to support collaboration in various forms. Worksharing enables multiple team members to work on a single project file simultaneously, with a central model managing updates. For distributed teams, Revit can integrate with cloud-based platforms like Autodesk BIM Collaborate Pro, allowing real-time collaboration across locations.</p>
<p data-start="2026" data-end="2471">Revit also facilitates interoperability with other software used in the AEC industry. It supports import and export in multiple formats, including DWG, IFC, and DGN, and can connect with analysis tools for energy performance, structural analysis, and daylight simulations. Its API (Application Programming Interface) allows for customization and automation through tools like Dynamo, enabling advanced workflows and repetitive task automation.</p>
<h2 data-start="2473" data-end="2500">Practical Applications</h2>
<p data-start="2502" data-end="2889">In architecture, Revit is used for conceptual design, detailed design development, and construction documentation. Engineers use Revit for structural analysis and to coordinate MEP systems with architectural and structural elements. Contractors and project managers use Revit models for quantity takeoffs, construction sequencing, and clash detection, ensuring fewer conflicts on site.</p>
<p data-start="2891" data-end="3071">Revit is also applied in facility management, as the detailed model can serve as a digital twin of the completed building, providing valuable data for operations and maintenance.</p>
<h2 data-start="3073" data-end="3085">Summary</h2>
<p data-start="3087" data-end="3554">Revit provides a unified environment where design, documentation, and analysis coexist in one coordinated model. Its parametric nature, data integration, and multi-disciplinary capabilities have made it a standard in the AEC industry. Whether used for designing a single-family home or a large-scale infrastructure project, Revit enables teams to work more precisely, maintain consistency across outputs, and manage complex building information in an organized way.</p>

Revit

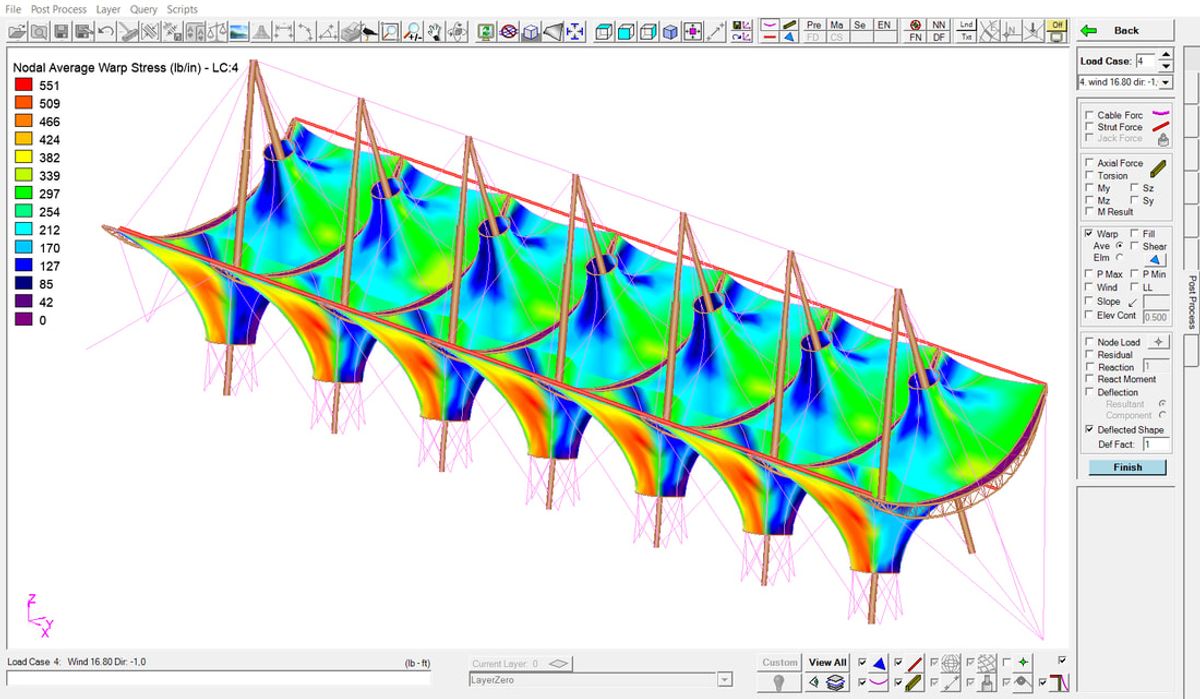

NDN is the only true engineering and production-oriented software for real project design and manufacturing. It is easy to learn, contains the fastest matrix solver in the industry, and features video game quality graphics and renderings. NDN automatically loads your structure, sizes structural members, and produces fabric patterns to your desired width. NDN Software is used by many of the most prestigious engineering consultants and fabricators worldwide.

SAP2000 offers a single user interface to perform modeling, analysis, design, and reporting. The customizable SAP2000 interface allows users to define window layouts and toolbar layouts.<br /><br />More info on pricing: https://www.csiamerica.com/sales

SAP2000

Grasshopper is a visual programming language and environment that pairs with Rhino 3D, a software program also developed by Robert McNeel & Associates. Grasshopper allows users to build algorithms by dragging and connecting components on a digital canvas. From parametric modeling and fabrication, lighting performance analysis, to building energy consumption, Grasshopper provides an intuitive way to explore design without requiring programming experience.

NDN

Gallery

Key Facts

Case Studies (1)

Allianz Field

Walter P Moore

AEC Companies / Customers (2)

Walter P Moore

Populous

Similar Tools

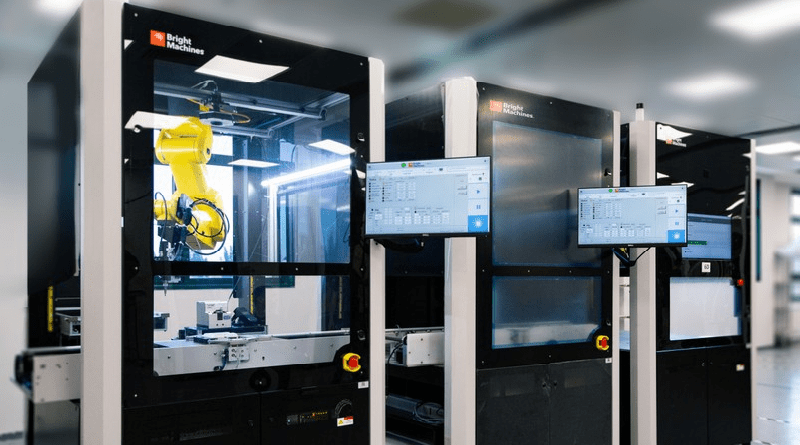

Bright Machines
