3DMeasure

Verified

3DMeasure is a free Revit plugin from Camilion that measures distances in any 3D view by selecting two points or clicking an edge.

It shows delta values and coordinates in Internal Origin, Project Base Point and Survey Point systems, and exports results to the clipboard.

Built for Revit users who need fast 3D measurements without leaving the model.

Visit website
Categories
Building Information Modeling (BIM)

3DMeasure Overview

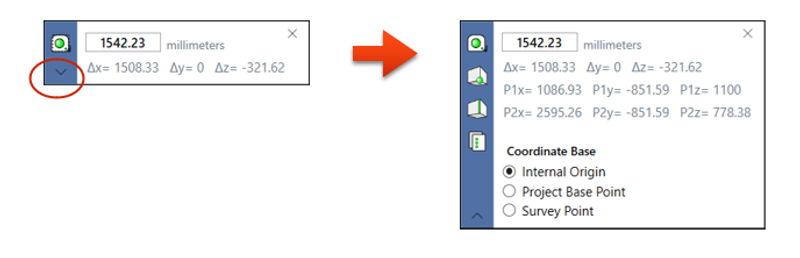

3DMeasure is a free Revit plugin from Camilion, an Autodesk Authorized Developer based in Barcelona, Spain. It solves a long-standing gap in Revit's native toolset: measuring distances directly in a 3D view. Users select two arbitrary points, or click a single edge, and a modeless dialog displays the distance along with delta values (Δx, Δy, Δz) and coordinates. Because the dialog is modeless, work can continue in the model without closing it. The plugin supports switching between three coordinate systems — Internal Origin, Project Base Point, and Survey Point — and displays results in the project's defined units and rounding. Measurements and coordinates can be exported to the clipboard for use elsewhere. 3DMeasure also works across linked models, though a few Tab key presses may be needed to snap correctly when a linked model's origin does not coincide with the host model's origin. 3DMeasure is compatible with Autodesk Revit versions 2018 through 2027 and is available at no cost from Camilion's website.
3DMeasure is a free Revit plugin from Camilion, an Autodesk Authorized Developer based in Barcelona, Spain. It solves a long-standing gap in Revit's native toolset: measuring distances directly in a 3D view. Users select two arbitrary points, or click a single edge, and a modeless dialog displays the distance along with delta values (Δx, Δy, Δz) and coordinates. Because the dialog is modeless, work can continue in the model without closing it. The plugin supports switching between three coordinate systems — Internal Origin, Project Base Point, and Survey Point — and displays results in the project's defined units and rounding. Measurements and coordinates can be exported to the clipboard for use elsewhere. 3DMeasure also works across linked models, though a few Tab key presses may be needed to snap correctly when a linked model's origin does not coincide with the host model's origin. 3DMeasure is compatible with Autodesk Revit versions 2018 through 2027 and is available at no cost from Camilion's website.

Specs

Integrations
1
Platforms
Windows
Supported lifecycle phase
Operation & Maintenance

3DMeasure Pricing

PRICING PLANS
Free|0/free

Gallery

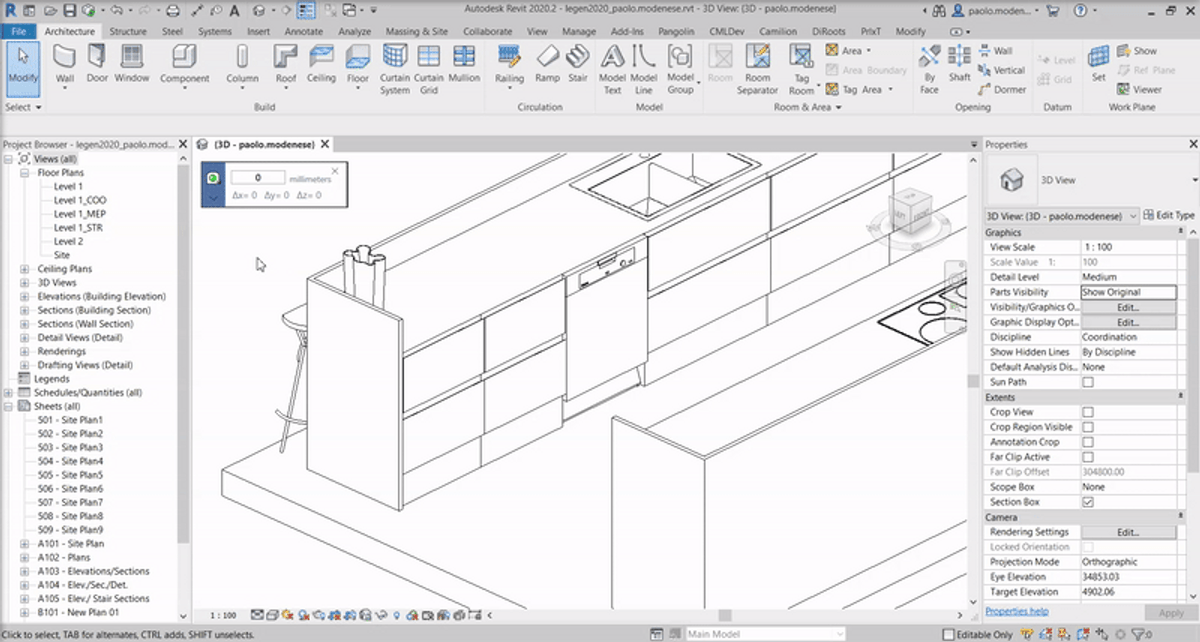

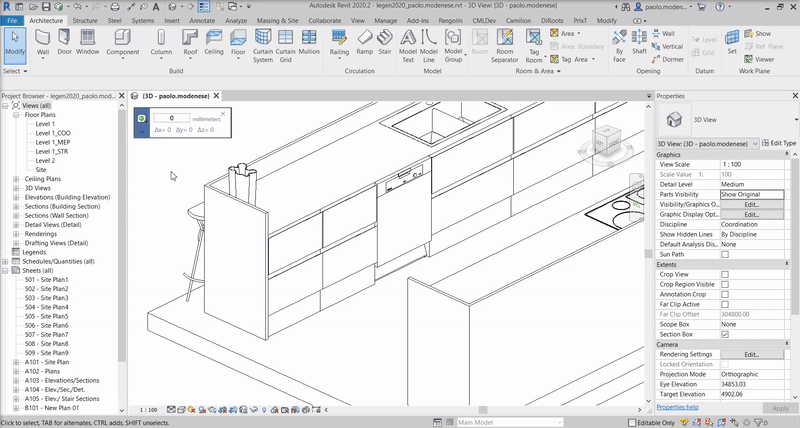

See 3DMeasure in action through screenshots and short videos.

3DMeasure – Free Revit 3D Measurement Plugin
undefinedundefined

3DMeasure Frequently asked questions

Yes. 3DMeasure is offered by Camilion at no cost, with no listed paid tier.
