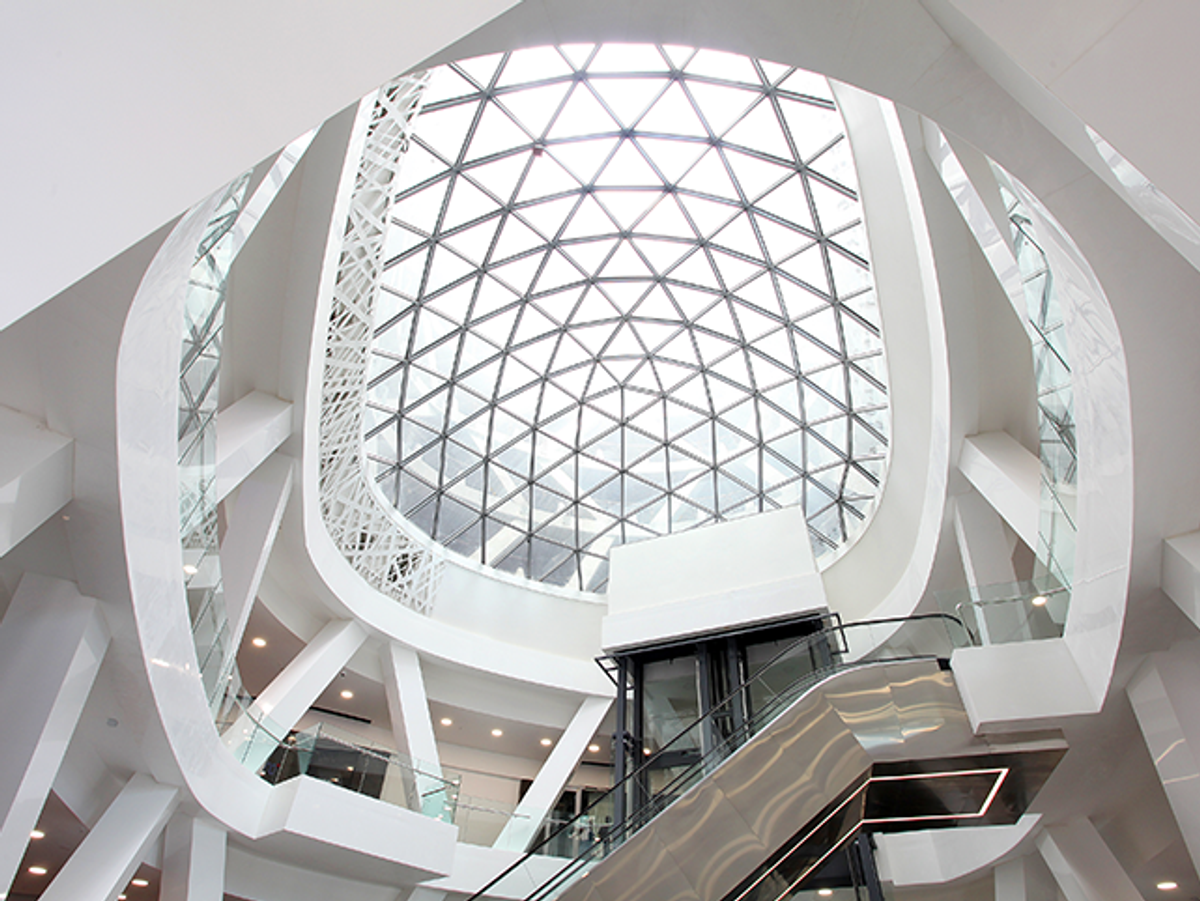

Ava-Center Single-Layer Free-Form Structure

Ava-Center Single-Layer Free-Form Structure
Ava-Center Single-Layer Free-Form Structure
Ava-Center Single-Layer Free-Form Structure
Ava-Center Single-Layer Free-Form Structure
Ava-Center Single-Layer Free-Form Structure
Ava-Center Single-Layer Free-Form Structure
Ava-Center Single-Layer Free-Form Structure
Ava-Center Single-Layer Free-Form Structure
Mesh angles - After
Mesh Glazing Perspective
Structucture Location Condition
+6
Project Type:
Mixed Use, Commercial/Corporate
Tools Used:
Done by:
Industry:
Engineering, Architecture
Company Size:
11-50 Employees
Year:
2017
Single layer space frame structures are a bit off chart of challenging projects yet are so amusing to handle via novel computational tools. Ava-Center has been designed by Floyd Motion Architects leading by Reza Daneshmir in Iran. The related structure has been built upon a sub-contractor known as Alusys.ir and Ardaena took part in Form-Finding and Tessellation Optimization processes. No matter how a free-form footprint based structure could be tough to manage for optimized design, in this project we tried to have everything modeled parametric, hence we could control the design alternatives. We did not use caddisfly here but based on the experience we got, Ardaena developed Caddisfly 01.01 afterwards for its own use, however, in compare to the time Ava-Center was designed by, if we had developed it before, we could save almost 4 months ahead to have everything modeled.
