AimeCADCAM is an AI-powered CAD/CAM automation platform developed for the mechanical manufacturing, engineering, architecture, and construction industries. The platform uses multimodal AI to understand images, PDFs, and technical drawings, automatically extracting relevant information and converting visual drawing data into structured, editable CAD files.
Traditional design and manufacturing workflows often require engineers and designers to manually recreate CAD drawings from images or PDFs, interpret technical drawings, extract dimensions and other information, and prepare data for downstream engineering or manufacturing processes. These tasks can be time-consuming, particularly when teams work with large volumes of drawings. AimeCADCAM helps automate these processes and reduce repetitive manual work.

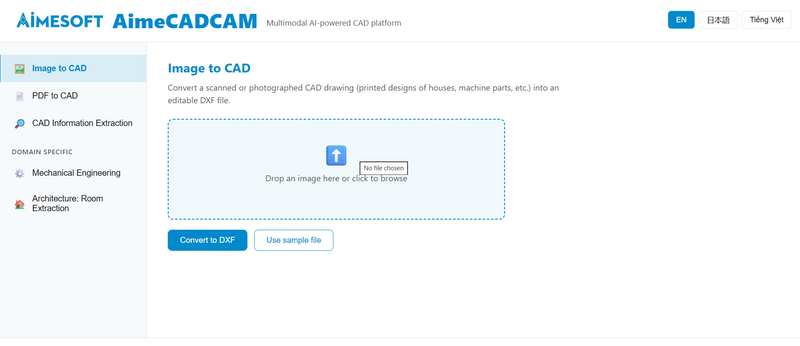

Users can upload images, PDFs, and existing CAD files directly to the platform. The AI analyzes the drawing content and extracts technical information such as dimensions, curves, layers, and other relevant drawing elements. Images and PDFs can then be converted into editable CAD files, making existing drawings easier to modify, reuse, and integrate into subsequent design workflows.

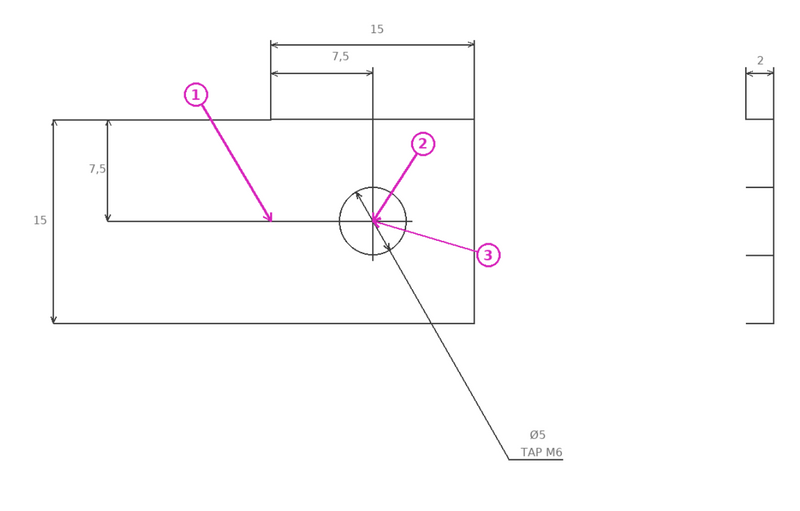

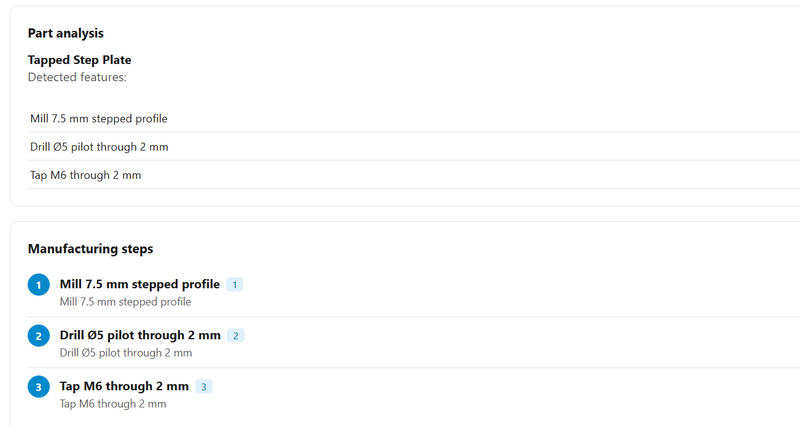

For mechanical engineering and manufacturing, AimeCADCAM can analyze technical drawings and support specialized tasks such as generating mechanical manufacturing steps and parameters. The platform can also be extended to support customized manufacturing workflows, including calculating material requirements or production costs based on a customer's specific requirements.

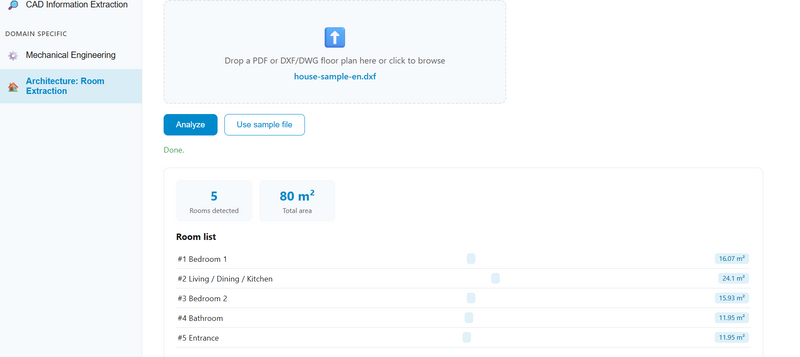

For architecture and construction, AimeCADCAM can analyze architectural drawings to identify elements such as walls and rooms, and can automatically calculate floor areas. These capabilities can help teams extract useful information from existing drawings without having to manually interpret every drawing element.
Beyond these core capabilities, AimeCADCAM can be customized with additional features according to each customer's specific workflow and business requirements. Potential applications include reconstructing 3D models from 2D drawings, calculating material quantities and costs, generating manufacturing processes, and adapting cost estimation to customer-specific product catalogs, pricing rules, and technical standards.
Typical workflow:
-
Upload drawings
Users upload images, PDFs, or existing technical/CAD drawings.
-
AI drawing analysis
The AI analyzes the drawings to understand their visual and technical content.
-
CAD conversion and data extraction
The system converts images or PDFs into editable CAD files and extracts relevant technical drawing data.
-
Specialized processing
Depending on the application, the extracted data can be used for mechanical manufacturing processes, architectural analysis, room detection, floor area calculation, or other engineering workflows.
-
Customized AI solutions
Additional features can be developed based on the customer's requirements.
AimeCADCAM enables companies to reduce repetitive CAD work, make better use of existing technical drawings, and accelerate workflows across mechanical manufacturing, engineering, architecture, and construction. In addition to AimeCADCAM, Aimesoft also provides custom software development and IT outsourcing services, allowing companies to extend their development capabilities when additional technical resources are needed.
