Barclays Center is a 675,000 square foot, 19,000-seat arena in Brooklyn whose weathering steel envelope is made of 12,000 uniquely shaped panels, fabricated directly from the design model without conventional drawings.
Project Overview
SHoP Architects designed the exterior envelope and public realm of Barclays Center in Brooklyn, New York, which opened in 2012. The arena covers around 675,000 square feet and seats up to 19,000. Its defining element is a lattice of weathering steel that wraps the building and recalls the colour and scale of the brownstone blocks around it, resolving an enormous single-use volume into something that reads at the scale of its neighbourhood.
A Facade of 12,000 Unique Panels
The envelope is composed of 12,000 individually shaped weathering steel panels. Because the surface twists and folds continuously, no two panels are identical, which under conventional practice would mean 12,000 shop drawings.
The panels were grouped into roughly 900 large mega-panels for transport and erection, each weighing between 7,000 and 7,300 pounds and combining the weathering steel lattice with backing frames, insulation and glazing. In total the facade and enclosure package covered around 219,000 square feet.
Model to Machine, Without Drawings
The significance of Barclays Center in construction technology is not the shape but the process. SHoP developed a model-based workflow in which design information connected directly to digital fabrication instructions for each panel, eliminating the need for conventional drawings. The geometry that defined the design was the same geometry that drove the machines cutting the steel, so there was no interpretation step between architect and fabricator.
SHoP also built a custom iPhone application that tracked individual panels in real time through production, transport and erection, feeding a live virtual model so the client could see progress against the actual building.
Fabrication and Pre-Weathering
ASI Limited of Whitestown, Indiana was contracted to design and fabricate the facade and enclosure package. Weathering steel develops its protective patina through controlled corrosion, and if that happens on site the runoff stains everything below it. ASI therefore built a dedicated weathering facility with a 2,500 foot conveyor system that cycled panels through accelerated wet and dry rusting up to thirty times a day over three to four months, so panels arrived already patinated.
When the Fabricator Failed
ASI entered bankruptcy in December 2011, midway through fabrication, on a project with a fixed opening date. Dissimilar Metal Design took over and worked directly from the BIM models inherited from SHoP.
This is the strongest practical argument in the whole case study. Because the panel definitions lived in a coherent digital model rather than in one fabricator's shop drawings and tooling, a replacement fabricator could pick up the work from the model itself. A drawing-based project would have faced re-documentation of thousands of unique parts.
Early occupancy did produce visible rust bleeding onto adjacent pavements, which stabilised as the patina matured.
Key Facts
View key facts for "Barclays Center".
Business Impact
- 12,000 unique facade panels
- Fabricated with no shop drawings
- Model survived fabricator bankruptcy
Client Name
Location
Completion Year
Project Type
Tools Used in the Case Study
Discover which tools and technologies were used for "Barclays Center".
Rhino 3D
Rhino 3D is a professional 3D modeling software used by architects, designers, engineers, and digital fabrication specialists to create accurate freeform geometry and complex parametric designs. Powered by precise NURBS modeling and an extensive plugin ecosystem, Rhino supports everything from conceptual design and architectural modeling to product development and computational design. Whether you’re comparing Rhino 3D pricing, exploring its features, evaluating the free trial, or looking for the best Rhino 3D alternatives, this guide explains everything you need to know to determine whether Rhino 3D software is the right choice for your workflow.

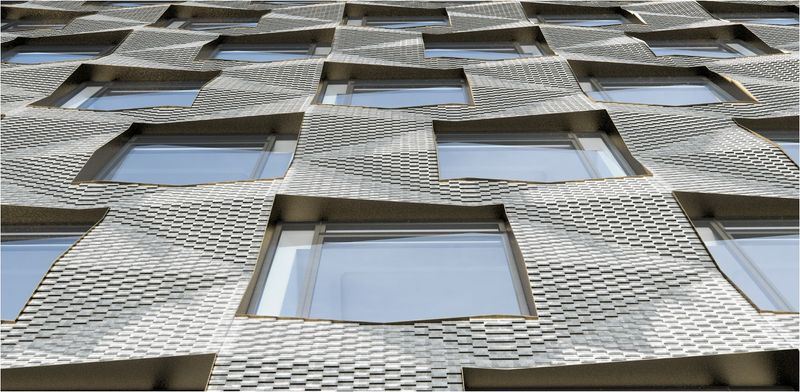

Assembly OSM
A digital platform for sharing a project’s requirements with different manufacturers involved in building a project
Grasshopper
Grasshopper 3D is the visual programming environment included with Rhino for computational and parametric design. Architects, engineers, façade specialists, and fabricators connect components on a canvas to generate geometry, process data, and test design variables without building every option manually. It works directly with Rhino’s modeling environment and can extend into BIM, analysis, optimization, and fabrication workflows through official integrations, scripting, and plugins.
User Experience
View user experience for "Barclays Center".
Why this tool/tech was selected
Why Rhino, Grasshopper and a Model-Based Workflow
Barclays Center is one of the projects that established parametric modelling as production infrastructure rather than a design experiment, and the reasons are specific to what the facade demanded.
Twelve thousand unique parts cannot be drawn
A facade where every panel differs breaks the economics of documentation. Rhino's NURBS geometry handles the continuously curving envelope natively, and Grasshopper turns panelisation into a rule: define how the surface divides, how each panel is shaped, how it meets its neighbours, and let the definition generate all 12,000 instances. Changing the rule regenerates everything, which is impossible with drawn documentation.
The model has to be manufacturable, not just accurate
Parametric definition allowed the team to align design intent with what the fabricator could actually produce, embedding manufacturing constraints in the geometry itself rather than discovering them during shop drawing review. That is what made it possible to drive fabrication directly from the model and skip conventional drawings altogether.
Assembly logic as well as part geometry
Grouping 12,000 panels into around 900 mega-panels of 7,000 pounds each is a rationalisation exercise: the groupings have to respect transport limits, crane capacity, weld access and the geometry of the lattice simultaneously. Solving that in a parametric model, where a change to the grouping strategy propagates automatically, is far faster than resolving it by hand.
Tracking as well as making
Once every panel is a uniquely identified object in a model, tracking it through production and erection becomes a data problem rather than a paperwork problem, which is what SHoP's custom tracking application exploited.
A note on the tool listing
Assembly OSM is listed as a tool against this case study. Assembly OSM is an off-site manufacturing venture founded by SHoP partners well after Barclays Center opened in 2012, and it addresses high-rise residential construction rather than arena facades. It is best understood as a later development of the thinking demonstrated here rather than as a tool used on this project.
Challenges the Client Faced before
Every panel is different
The envelope's continuously twisting surface means all 12,000 weathering steel panels are uniquely shaped, with no typical condition to document once and repeat.
An arena at the scale of a neighbourhood
The design problem was to make a very large single-purpose building sit within a dense Brooklyn street pattern of brownstones. That drove the material choice and the lattice grain, and made the envelope geometry non-negotiable.
Weathering steel stains what is below it
Corten develops its patina by rusting, and untreated panels bleed onto pavements and adjacent surfaces during the first years. On a heavily used urban site with public plazas that was unacceptable, which is why an accelerated pre-weathering process had to be industrialised before installation.
Handling and erection
Assembling panels into 900 mega-panels of up to 7,300 pounds each solves the erection sequence but creates transport, lifting and tolerance constraints that had to be resolved alongside the geometry.
The fabricator went bankrupt mid-project
ASI Limited entered bankruptcy in December 2011 with fabrication incomplete and a fixed opening date. Replacing a facade fabricator partway through a project of this complexity is among the worst events that can occur on a construction programme.
The previous method used
The conventional route for a complex facade is the shop drawing. The architect issues design intent drawings, the fabricator re-models the geometry in their own system, produces shop drawings for every distinct condition, and the architect reviews and approves them before anything is cut.
That process assumes repetition. It works when a facade has twenty typical panel types and a schedule of variations. With 12,000 unique panels it collapses: the drawing production alone would consume the programme, the review effort would be impossible to resource, and every re-modelling step would introduce divergence between what was designed and what gets built.
It also concentrates critical project knowledge inside one fabricator's systems, which is exactly the exposure that materialised when the original fabricator went bankrupt mid-contract.
Time / Money saved & the Business Impact.
No comparative cost or programme figures have been published for the digital workflow itself, so no savings percentages are claimed here. The documented outcomes are unusually clear on their own.
Conventional drawings eliminated
The headline result is that design information drove fabrication instructions directly, removing the need for conventional drawings for the panel package. On 12,000 unique parts, that removes an entire documentation and review programme rather than making one more efficient.
Design intent preserved to the millimetre
Because the fabricator worked from the same geometry the architect designed, the usual erosion of design intent through re-drawing and simplification did not occur. The building as built matches the model that was designed.
Continuity when the fabricator failed
The most valuable and least anticipated return came when ASI went bankrupt. Dissimilar Metal Design was able to take over and work directly from SHoP's BIM models, so the panel definitions survived the loss of the company that had been making them. A model-based workflow turned out to be a risk mitigation strategy as much as an efficiency one, and that is a genuinely transferable lesson for any client procuring bespoke facade work.
Real-time visibility for the client
SHoP's custom tracking application followed individual panels through production, transportation and assembly and fed a live virtual model. On a facade of 12,000 parts arriving as 900 assemblies, knowing exactly what has been made, shipped and hung is the difference between managing a programme and reacting to it.
Pre-weathered panels protected the public realm
Industrialising the patination, cycling panels up to thirty times daily over three to four months, meant the arena opened with its intended appearance and with staining largely confined to the factory rather than the street.
Influence on the industry
Barclays Center is routinely cited as a landmark for model-driven fabrication in North American practice. SHoP's later founding of an off-site manufacturing venture applying similar logic to high-rise residential construction is a direct continuation of the approach demonstrated here.
Customer Quote
-
Original Case Study
Additional Information
Project credits
Project: Barclays Center. Location: Brooklyn, New York, United States. Opened: 2012. Area: approximately 675,000 square feet. Capacity: up to 19,000. Exterior envelope and public realm design: SHoP Architects. Facade and enclosure fabrication: ASI Limited of Whitestown, Indiana, succeeded by Dissimilar Metal Design following ASI's bankruptcy in December 2011. Facade: 12,000 uniquely shaped weathering steel panels, grouped into approximately 900 mega-panels of 7,000 to 7,300 pounds each, across roughly 219,000 square feet of facade and enclosure.
Process notes
Model-based design in which design information connected directly to digital fabrication instructions, eliminating conventional drawings. Custom iPhone application for real-time panel tracking through production, transport and assembly, feeding a live virtual model for the client. Accelerated pre-weathering on a 2,500 foot conveyor system, cycling panels up to thirty times a day over three to four months.
